Alien Queen surrounded by inexhaustible Xenomorphs in diorama with Darth Vader is a reflection on what the possible clash of two fictional universes would look like.
This 3D Diorama consists of files in StereoLithography (.Stl) format that is optimized for 3D printing.
Alien Queen 3D Printing Figurine in Diorama comes in 3 versions for each 3D printer type (FFF/FDM, DLP/SLA and SLS).
ADAPTATION FOR 3D PRINTING
Alien Queen figurine in diorama with Darth Vader and crawling Xenomorphs for 3D printing is a static assembly model and its moderation and adaptation for different types of 3D printers took Gambody team 88 hours in total. With the whole diorama being comprised of the great Alien Queen, Darth Vader figurine and 10 smaller Xenomorphs, Gambody team dedicated much time and effort to review every single part of the impressive scene and to make sure every element of the diorama is adapted for 3D printing. The model’s cutting in its huge assembly version was chosen by our team to minimise the amount of filament needed for generated support. Therefore, and also so to ensure the cleanest 3D printed result possible, each dorsal tube on each Xenomorph’s back, each creature’s head, tail and all extremities are provided as a separate assembly piece. If you take a look at the way the Queen herself is cut into assembly parts, you will see that with the same purpose of guaranteeing the clean outcome, the figurine was divided into many separate parts along the creature’s body seams and its jaws, as well as inner jaw, were extracted from the monster’s mouth for convenient printing. Consequently, Darth Vader figurine comes with the cloak “taken off” and the lightsaber separate. Besides, some of the diorama’s parts were hollowed out for you to save resin in the model’s Eco version. All assembly parts are provided in STL files in recommended positions that were worked out so to ensure the smoothness of the details’ surfaces after printing and that the 3D printing beginners won’t face difficulties when placing the parts on a build plate.
The figurine is saved in STL files, a format supported by most 3D printers. All STL files for 3D printing have been checked in Netfabb and no errors were shown.
The model’s scale was calculated from Alien Queen’s actual height that is 6096 mm. The 3D printing figurine’s chosen scale is 1/16 for the FFF/FDM version and 1/32 for the DLP/SLA/SLS versions.
VERSIONS’ SPECIFICATIONS

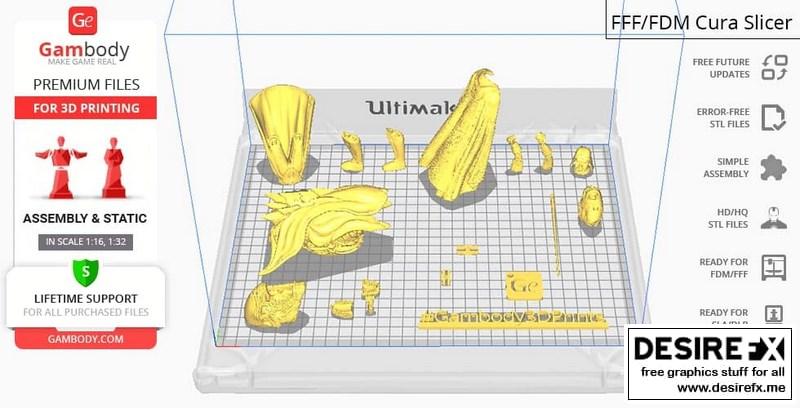

FFF/FDM 1.0 version features:
– Contains 146 parts;
– A printed model is 332 mm tall, 302 mm wide, 536 mm deep;
– Assembly kit includes locks to connect the model’s parts securely without glue. One lock 145_ge_lock_7S(x7) needs to be printed 7 times; lock 146_ge_lock_10H(x61) needs to be printed 61 times;
– Instead of Darth Vader, your Queen may confront the 1:16 scale versions of Ellen Ripley, Power Loader or Predator;
– All parts are thoroughly divided in such a way that you will print them with the smallest number of support structures.
DLP/SLA/SLS 1.0 version features:
– Contains 35 parts;
– A printed model is 166 mm tall, 151 mm wide, 268 mm deep;
– All parts are divided in such a way to fit the build plates and to make sure that support structures are generated where needed.
DLP/SLA/SLS Eco 1.0 version features:
– Contains 35 parts;
– A printed model is 166 mm tall, 151 mm wide, 268 mm deep;
– Contains some hollowed out parts to save resin.
